Hoapp Model Edge
Edge Series models operate on heating and cooling.

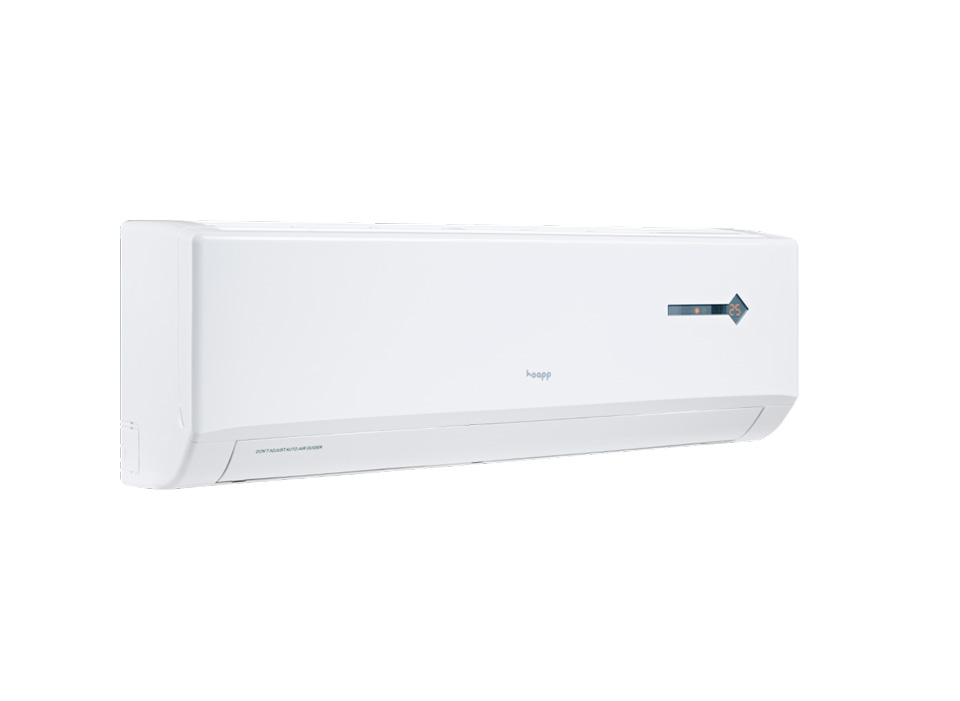

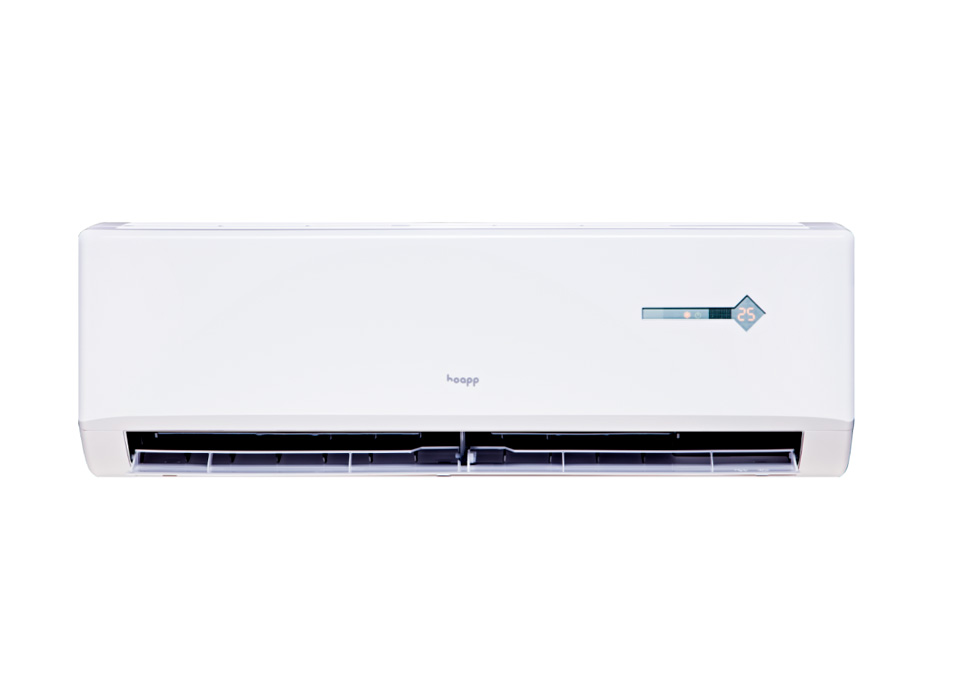

Laconic design, blends harmoniously with the interior. Small size – indoor unit is not more than 85 cm is ideal for smaller living spaces from 20 to 35 sqm.
Excellent show themselves in the kitchen, living room, study. Relatively low noise up to 37 dB (A), which allows to install air conditioners in this series in a residential area – a small living room or study.
It can be installed in bedrooms, provided that the operation mode at low speeds.
PRODUCT DESCRIPTION
| Indoor unit | HSC-HA22VA | HSC-HA34VA | HSC-HA34VA | ||
|---|---|---|---|---|---|
| Outdoor unit | HMC-HA22VA | HMC-HA28VA | HMC-HA34VA | ||
| Power supply | V, ph, Hz | 220-240 V, 1 phase, 50Hz | |||
| EER/COP | 2.8/3.2 | 2.8/3.2 | 2.8/3.2 | ||
| Cooling | Performance | kW | 2.0 | 2.64 | 3.25 |
| Consumption cooling | W | 732 | 942 | 1150 | |
| Heating | Performance | kW | 2.1 | 2.8 | 3.4 |
| Rated current | А | 659 | 879 | 1053 | |
| Air flow | m3/h | 400/360/320/290 | 400/370/340/310 | 600/550/500/450 | |
| Indoor unit | Noise level | dB(А) | 37/35/32 | 37/35/32 | 37/35/32 |
| Dimensions | WxHxD | 730х254х184 | 730х254х184 | 848х274х189 | |
| The weight | kg | 8 | 8 | 10 | |
| Outdoor unit | Noise level | dB(А) | 50 | 50 | 52 |
| Dimensions | WxHxD | 720х428х310 | 720х428х310 | 776х540х320 | |
| The weight | kg | 22 | 26 | 31 | |
